CompactLogix 5480

CompactLogix 5480 controllers are real-time controllers with Windows 10 IoT Enterprise running in parallel with the Logix control engine. This device uses the same control engine as found in the ControlLogix 5580 and CompactLogix 5380 controllers.

This line of Logix controllers supports embedded Windows applications such as analytics, data gathering, and predictive algorithms. The ability to collect data and make decisions at the machine level helps to reduce development complexity and simplify data management.

While the 5380 functions strictly as a dedicated, pure real-time automation controller, the 5480 provides a hybrid edge-computing platform within the same physical housing. Key advantages include:

  • Integrated Windows Computing: The 5480 features an independent Intel-based processor running Windows 10 IoT Enterprise, connected to the Logix engine via a high-speed internal interface.This eliminates the need for a separate industrial panel PC.
  • Local HMI and SCADA Hosting: You can run Windows-based visualisation software (such as FactoryTalk View SE or even Ignition) directly on the controller to handle local operator interfaces and SCADA data.
  • Edge Analytics and Data Logging: It enables local data processing, running custom applications (like Python or MATLAB scripts), or hosting local historians (such as FactoryTalk Historian) to aggregate machine data right at the edge before sending summaries to the cloud.
  • Isolated Architecture:The Windows environment and the real-time Logix control engine operate on separate, isolated processors with dedicated memory and network pathways.This ensures that any software updates, background tasks, or potential issues on the Windows side cannot interrupt, delay, or crash the deterministic execution of the real-time control program.

It is available in 5M, 10M and 20M memory versions, comparable to the ControlLogix L8 range.

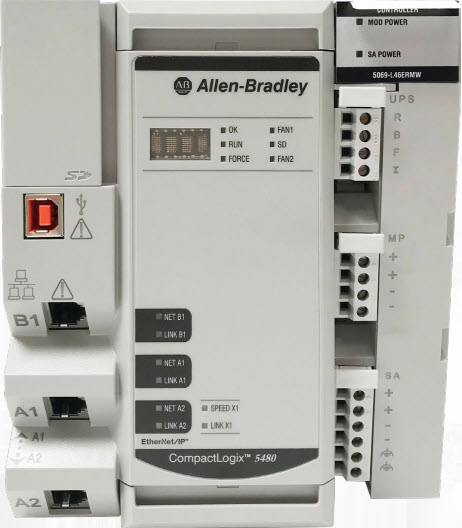

compactlogix 5480

Port Functions

Port B1

  • Can connect to an enterprise-level network or a device-level network.
  • Used for plant-level or supervisory communication.

Port A1 & Port A2

  • Dual-IP mode: Ports A1 and A2 are assigned independent IP addresses on separate subnets to segregate enterprise and device traffic.
  • DLR mode (Device Level Ring): Ports A1 and A2 cooperate in a ring topology on a single subnet.Designed for device-level networks (such as I/O and motion control).
  • Linear/Diagnostic mode: Both ports share the same subnet and IP address while remaining addressable as separate diagnostic interfaces.

An additional fourth dedicated port is located on the bottom of the controller for the Windows 10 IoT Enterprise commercial OS subsystem.
